The steering torque sensor is integrated in the electromechanical power steering and provides the customer with information on the steering torque The sensor records the torsion bar angle required for the steering movement ADVANTAGES Modular sensor design for all types of electromechanical power steering;.

Torque sensor eps. 3101 Torque Sensor in Neutral Position This indicates the car sensor cannot recognize the straightahead position of the front wheels, which will turn on the EPS light This code can be triggered with a wheel alignment or steeringsuspension repairs The sensor simply needs to relearn straight front wheel position. In addition to combined steering torque and angle sensors, HELLA also supplies sensors for steering torque only The steering torque sensor is integrated in the electromechanical power steering and provides the customer with information on the steering torque The sensor records the torsion bar angle required for the steering movement ADVANTAGES. The Electric Power Steering works on electric motor attached with wheel axle to turn the car But, the rubbers and motor get damaged after a certain period due to aging or by other means Let’s talk about the reasons that cause EPS malfunction 1 Over Speed vs Bumpy Roads Driving with higher speed over rough roads is another way to EPS.

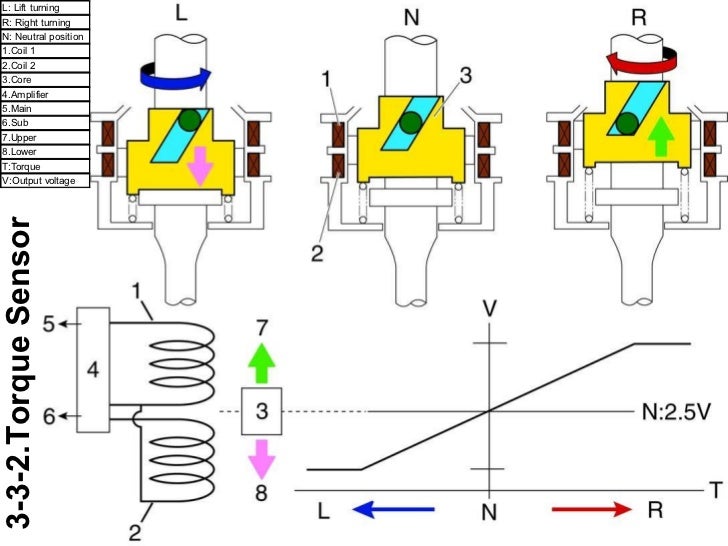

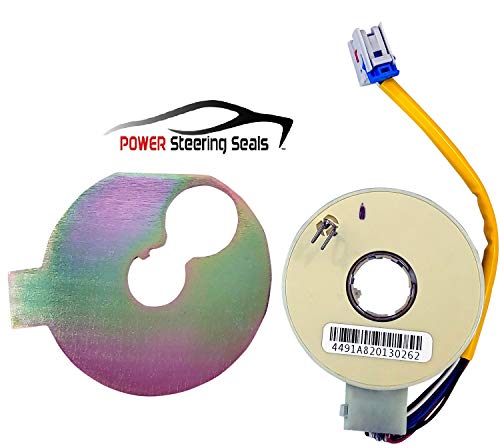

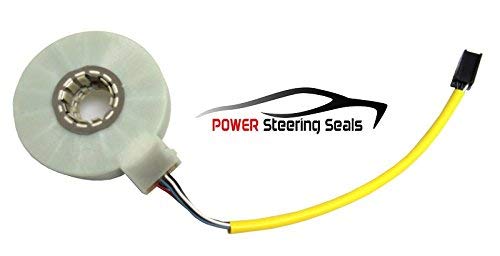

The steering column has an input shaft, from the steering wheel to the torque sensor, and an output shaft, from the torque sensor to the steering shaft coupler The input and output shafts are separated by a torsion bar, where the torque sensor is located The sensor consists of a compensation coil, detecting coil and 3 detecting rings. EPS is torsionbased It relies on TWO torsion sensors on two separate shafts to determine which way the steering wheel is being turned (and the feedback from the ground on the inverse side of that) Whatever is being "sensed" either gets bent or knocked out of alignment in the process of being hit with an impact and/or hammer. OEM replacement torque sensor for the column mounted EPS unit Identified by the yellow heat shrink on the cable Substitute for Ford part #CL8Z3F818A Sensor only Free shipping in the US!.

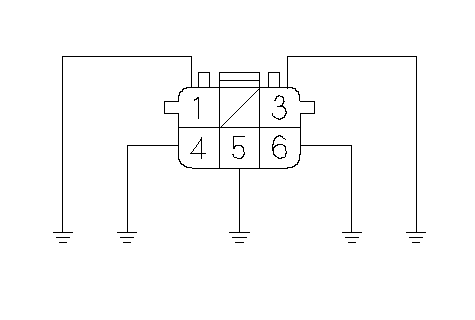

Things are a little different with the electric steering. 1Check torque sensor power supply circuit Turn ignition switch ON Check voltage between EPS control unit harness connector terminals and ground CAUTION Steering wheel is neutral position (There is no steering force) Is the inspection result normal?. Limited Time Sale Easy Return.

0 Answers 0 votes answered Feb 8, 17 by Lauren. The torque sensor performs the same function as the torsion bar and spool valve in a hydraulic system The electronic sensor uses a torsion bar in the same manner as in the spool valve There are three different types of electronic torque sensors, and they are classified as contact and noncontact types. Since the steering wheel isn’t moving, the steering angle sensor doesn’t see this dynamic But the torque sensor does It measures the rotation of an input shaft sensor and an output shaft sensor, which are connected by a torsion bar The more the bar twists, the higher the discrepancy between the two sensors, determining steering column torque.

System integration capability with HELLA EPS control unit;. The voltages produced by the torque and steering position sensors are positive and negative values that mirror each other and are similar in function to those produced by an electronic throttle When graphed with each other, they intersect at specific intervals, which allows the EPS module to rationalize voltage inputs and set various trouble codes. What the BMW Power Steering Torque Sensor is For BMW Power Steering Torque Sensor is part of an Electronic Power Steering system An Electronic Power Steering (EPS) system has more advantages than a hydraulic steering system If the engine stops, electronic power steering still provides assist.

Steering Torque Sensor Electronic power steering (EPS) has enabled benefits to the automotive world such as lightweighting of technologies, increasing efficiency and reducing complexity and cost A key component to operating the EPS system is the torsion bar. The torque sensor has a cover on it held in place by 910 barb clips, remove this cover to expose the torque sensor and remove it, it is held in position by two very small plastic posts that penetrate the printed circuit board Now, the part of the shaft you are seeing is separate from the part on the opposite side of the EPS unit. The steering shaft torque sensor uses _____ as inputs to the EPS control module asked Feb 8, 17 in Trades & Technology by OneTrueHeart A) Voltage signals B) Viscous resistances C) Calibrated springs D) Vacuum pulses automotive;.

Equipped with electric power steering assist (EPS), the steering column torque sensor or the EPS motor/controller may cause the vehicle to suddenly lose EPS If the vehicle loses EPS, the vehicle’s. Unique high stiffness torque sensor (< 1 deg deflection) Contactless input torque sensing technology Fully integrated EPS including power and control electronics CAN interface and diagnostic capabilities Assist level adjusted based on user input, vehicle speed, wheel position, gear selection and engine RPM. Ratiometric measuring principle to improve accuracy over total.

A torque sensor is attached to the steering column, near the torsion bar, to convert the torque to electrical signal The EPS ECU uses the signal to calculate the amount of power assist the Motor should apply There are different methods to detect the torque, however hall effect and magneto resistive sensors are two common types. 08 Mercury Mariner with electronic power steering that has a bad torque sensor The steering column itself must be replaced since it is not possible to get. The torque sensor in the Servolectric® electric power steering system measures the torque the driver applies to the steering wheel Based on this data, the electronic control unit calculates the steering assistance which the electric motor needs to apply.

Torque sensors can be used to measure the torque on rotating systems which include engines, electric motors, crankshafts, and gearboxes An increase in the global demand for electric and hybrid vehicles along with a rising need for electric power steering (EPS) systems is influencing the growth of torque sensor market. A torque sensor is attached to the steering column, near the torsion bar, to convert the torque to electrical signal The EPS ECU uses the signal to calculate the amount of power assist the Motor. Bosch has developed a new TSS (torque sensor steering) torque sensor specifically for electric power steering (EPS) The new TSS allows sensitive measurement of the steering force exerted by the driver Based on the measured values, an electronic control unit determines how much steering support the electric servo motor needs to deliver—adapted to the condition of the road surface and.

Bosch’s new TSS (torque sensor steering) torque sensor for EPS systems Click to enlarge Bosch has developed a new TSS (torque sensor steering) torque sensor specifically for electric power steering (EPS) The new TSS allows sensitive measurement of the steering force exerted by the driver Based on the measured values, an electronic control unit determines how much steering support the electric servo motor needs to deliver—adapted to the condition of the road surface and vehicle speed. BMW Power Steering Torque Sensor is part of an Electronic Power Steering system An Electronic Power Steering (EPS) system has more advantages than a hydraulic steering system If the engine stops, electronic power steering still provides assist With electronic power steering system, you no longer need hoses, pump and drive belt in connection. Contactless input torque sensing technology Fully integrated EPS including power and control electronics CAN interface and diagnostic capabilities Assist level adjusted based on user input, vehicle speed, wheel position, gear selection and engine RPM.

Electric Power Steering (EPS) uses an electric motor and control module to provide steering assistance to the driver when needed EPS works by using the SAS and torque angle sensor to measure the motion and torque of the steering column This information tells the control module to apply varying amounts of assistive torque supplied from the. The steering shaft torque sensor uses _____ as inputs to the EPS control module asked Feb 8, 17 in Trades & Technology by OneTrueHeart A) Voltage signals B) Viscous resistances C) Calibrated springs D) Vacuum pulses automotive;. ShafttoShaft Rotary Torque Sensors with Optional Encoder TQ513 The TQ513 series features heavyduty silver slip rings that provide secure transmission of power and signal, and optional optical encoder for angle or speed measurement $2,.

The EPS works with an electric motor attached to the steering and column drive for turning the car swiftly The control unit of these motors features with few sensors connected to the vehicle’s electric power In hydraulic steering, a lot of force is required to move the wheels whereas;. How to fix power steering problem honda city car steering rack fix power steering hard to turn DTC trouble code showing 33 motor current detected malfu. Steering torque The sensor records the torsion bar angle required for the steering movement Steering angle The sensor measures the angle and speed of change in the position of the steering wheel Both sensor functions are integrated in one sensor and benefit from HELLA’s proprietary CIPOS ® technology.

The EPS control module also receives a vehicle speed input that, in combination with the steering position and torque sensors, combine to produce steering feedback to the driver The position and torque sensors might also provide an electric input to safetyrelated systems like the vehicle stability control system (VSC), if so equipped. Electric Power Steering (EPS) Columnassist typeThe power assist unit, controller and torque sensor are attached to the steering columnThis system is compact and easy to mount on the vehicleThis power assist system can be applied to fixed steering columns, tilttype steering columns and other column types Pinionassist type. Just access the EPS menu with a scan tool and select “Torque Sensor Learn,” then follow the prompts Honda says the torque sensor is temperature sensitive, and it must be stabilized at 48 to degrees Fahrenheit (10 to 30 degrees Celsius) before resetting the neutral position.

EPS (Electric power steering, Column assist type) system is an engine operation independent steering system that uses an electric motor to assist the steering force EPS control module controls the motor operation based on input signals from torque sensor and steering angle sensor via CAN (Controller Area Network), resulting in a more precise and timely control of steering assist thatn conventional enginedriven hydraulic systems. (1) EPS ECU The EPS ECU receives signals from various sensors, judges the current vehicle condition, and determines the assist current to be applied to the DC motor accordingly (2) Torque sensor When the driver operates the steering wheel, the steering torque is applied to the torque sensor input shaft via the steering main shaft. In EPS a steering angle and torque sensor is needed, which detects rotation torques applied on the torsion bar of the steering shaft together with steering angles (rotation angle) at the time of steering, and subsequently inputs these torque and angle signals, in order to determine the control output, into electronic control unit.

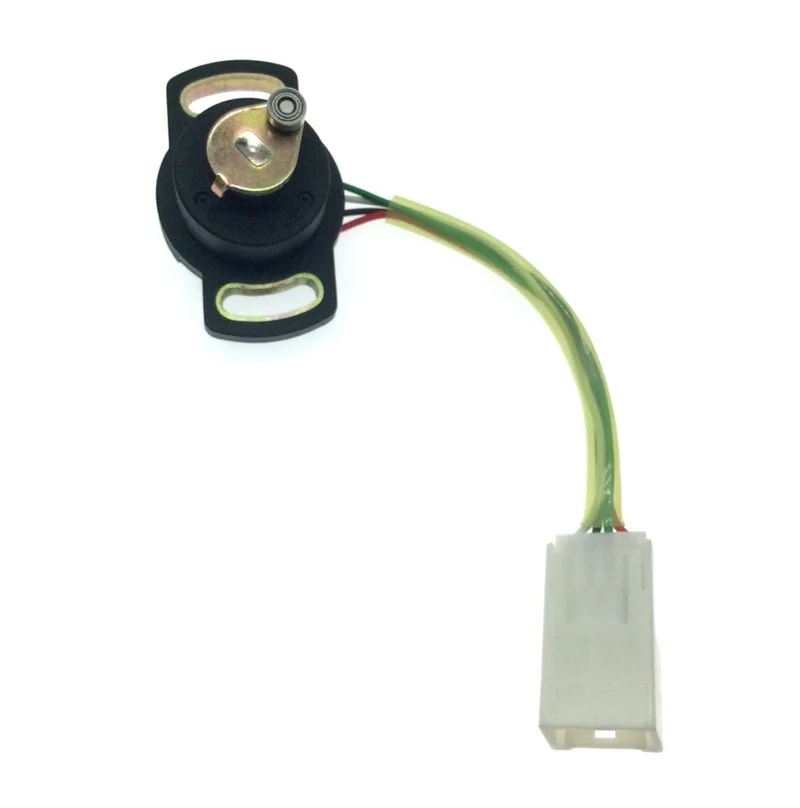

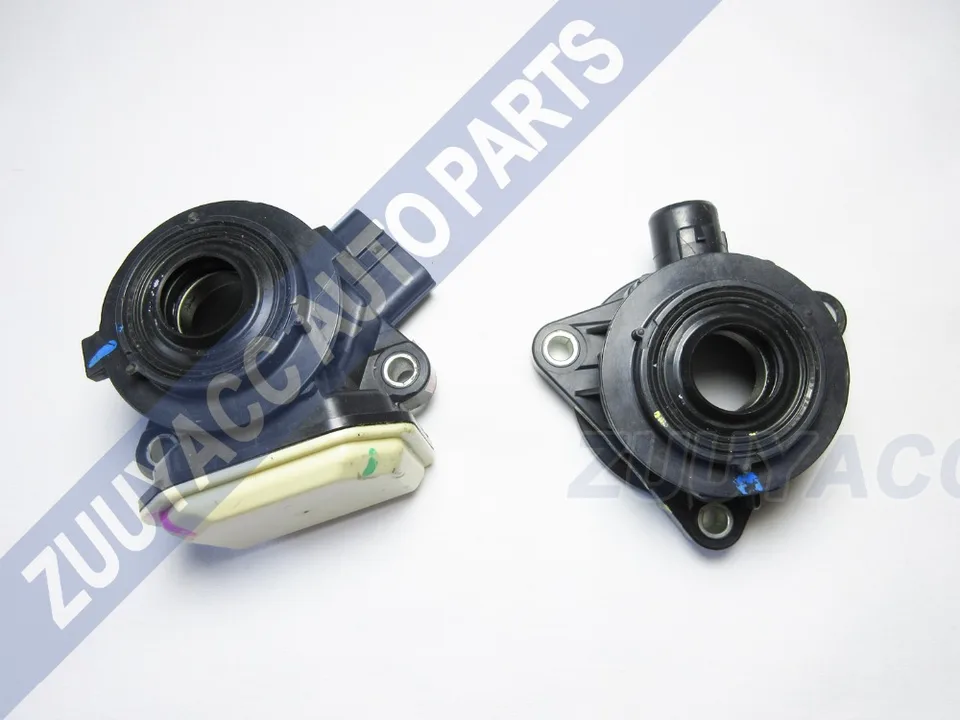

Cheap Torque Sensor, Buy Quality Automobiles & Motorcycles Directly from China Suppliersfor Suzuki Liana A6 Landy wagon R X5 ideal Torque Sensor Electronic Power Direction Angle Sensor EPS light sensor fault repair Enjoy Free Shipping Worldwide!. Note Carefully read and follow the important steering shaft torque sensor replacement tips below Review the steering shaft torque sensor replacement video BEFORE completing the repair For US A video that demonstrates the steering shaft torque sensor replacement can be viewed at wwwcenterlearningcom (or use the link on Global Connect). On pure hydraulic power steering systems, the output shaft is connected to a finely tuned control valve On EPS systems, the twisting motion is translated into a signal that’s sent to a control unit There are several different ways to generate that steering torque signal, and the sensor developed by Honda uses an unusual approach.

YES >> GO TO 2 NO >> Perform the trouble diagnosis for battery power supply circuit. TT Electronics' torque and position sensors, including Steering Sensors , are designed for today’s high performance electronic power steering systems, providing critical high accuracy torque and multiturn position information. EPS = Electric Power Steering FastFieros is working hard on a EPS system for the Fiero Saturn removed the hydraulic power steering pump Saturn chose a Koyosupplied electronic power steering unit that is speedsensitive, has an integrated torque sensor, and is said to provide an fuel savings of 07 mpg.

Note Carefully read and follow the important steering shaft torque sensor replacement tips below Review the steering shaft torque sensor replacement video BEFORE completing the repair For US A video that demonstrates the steering shaft torque sensor replacement can be viewed at wwwcenterlearningcom (or use the link on Global Connect). The EPS system uses variable assist, that provides more assistance as the speed of a vehicle decreases, on the contrary, it provides less assistance This functionality requires a delicate balance. Let's start first with a battery with a full charge While changing that out there is a ground right behind the battery and the EPS torque sensor plugs into the main connectors right there too Make sure the ground is tight (might be a good time to add a little Oxguard) and that the connector is tight It should "snap" together.

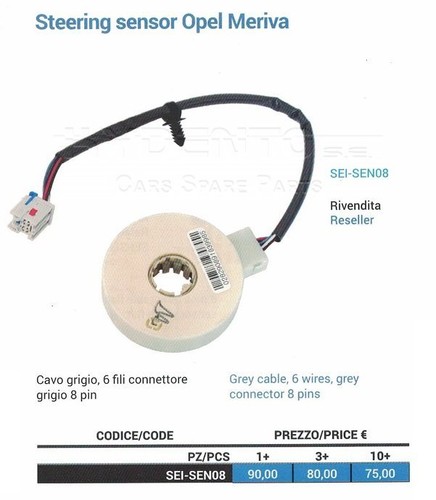

Fiat C1002, Opel C0460, Opel C0545, Fiat C1005, C1006, Aygo , C1 , 107 C1552 , C1554, C1555, Fiat C5002, Alfa Mito C1002, Ford Ka C1002, Fiat 500 C1002 , Fiat Panda. General Motors Electric Power Steering (EPS) Torque Sensor The power steering control module (PSCM) uses a torque sensor as its main input for determining the amount of steering assist The steering column has an input shaft, from the steering wheel to the torque sensor, and an output shaft, from the torque sensor to the steering shaft coupler. In this paper, we will present a torque and angle sensor for use in electrical power steering (EPS) systems The developed sensor has torsion angle sensing capabilities between the input and output shafts linked by a torsion bar as well as multiturn angle sensing of the steering wheel.

Fortunately the relearn procedure is simple;. The change in current produced by this process is input to the EPS CM With a change of input sensor signal current, EPS CM determines the driver's steering direction then, comparing current differences between the two sensors, the EPS CM determines whether the main sensor is open/short The Torque sensor can be damaged during disassembly of the sensor You must disassemble or remove the sensor when removing or replacing the assembly. (Torque Index Sensor) 2in1 package structure which modularized torque sensor and index sensor Noncontact magnetic type with excellent durability Measures the driver’s steering intention, and steering torque and angle Outputs pulse signals per sensor revolution (360°).

EPS = Electric Power Steering FastFieros is working hard on a EPS system for the Fiero Saturn removed the hydraulic power steering pump Saturn chose a Koyosupplied electronic power steering unit that is speedsensitive, has an integrated torque sensor, and is said to provide an fuel savings of 07 mpg. Absolute angle information for output and input shaft;. Above is a wiring diagram of the factory S00 EPS torque sensor and control unit The pink and white/green wires carry the torque signals to the computer, and based on these signals the EPS unit tells the electric motor attached to the rack to apply power to "assist" the driver turning the steering wheel.

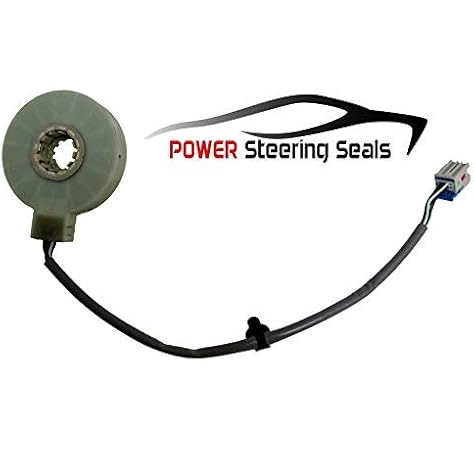

Jump to Latest Follow 1 4 of 4 Posts LooseNut · Registered Joined Jan 4, 18 · 168 Posts Discussion Starter • #1 • 11 mo ago I am in need of replacing what I think is the torque sensor on the electric power steering box. 3101 Torque Sensor in Neutral Position This indicates the car sensor cannot recognize the straightahead position of the front wheels, which will turn on the EPS light This code can be triggered with a wheel alignment or steeringsuspension repairs The sensor simply needs to relearn straight front wheel position. OEM replacement torque sensor for the column mounted EPS unit Identified by the grey heat shrink on the cable Replacment for GM part # This is for the sensor only.

Hi, Checked for any fault codes on my car via ISTA D Rheingold and I have the following logged at recent mileages (I have done a clear of fault codes prior) 439C EPS torque sensor (steering angle index) Index Faulty D01B2A Interface EPS (actual position EPS 5102) Signal invalid They. Searching for Torque Sensor Market 21 Global Industry Analysis, Opportunities, Size, Trends, Growth and Forecast 27 We got you covered at iCrowdNewswire. 2 Types of Torque Sensors in EPS The two main types of torque sensors found in electronic power steering systems are contact and noncontact technologies Both types perform the same function of taking input steering information and transmitting that data as output back into the EPS system, but there are several functional differences between the two categories.

In EPS a steering angle and torque sensor is needed, which detects rotation torques applied on the torsion bar of the steering shaft together with steering angles (rotation angle) at the time of steering, and subsequently inputs these torque and angle signals, in order to determine the control output, into electronic control unit. Hi, Checked for any fault codes on my car via ISTA D Rheingold and I have the following logged at recent mileages (I have done a clear of fault codes prior) 439C EPS torque sensor (steering angle index) Index Faulty D01B2A Interface EPS (actual position EPS 5102) Signal invalid They. Steering Torque Sensor Electronic power steering (EPS) has enabled benefits to the automotive world such as lightweighting of technologies, increasing efficiency and reducing complexity and cost A key component to operating the EPS system is the torsion bar When the vehicle operator turns the steering wheel, the torsion bar twists and this displacement is used to determine the level of input torque.
